Description

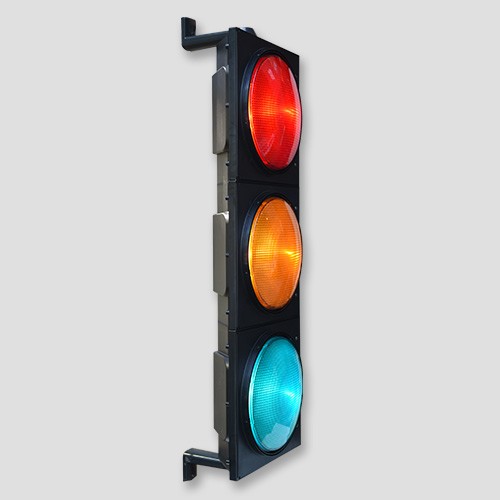

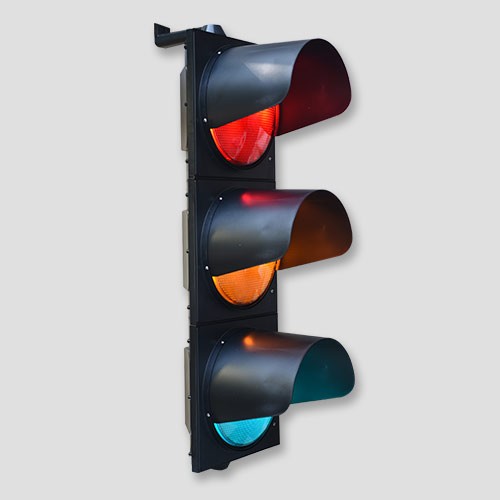

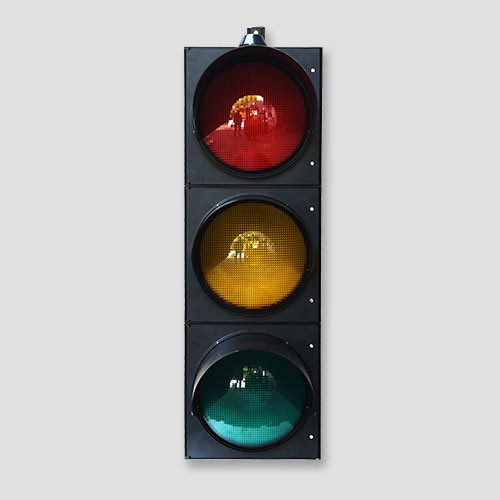

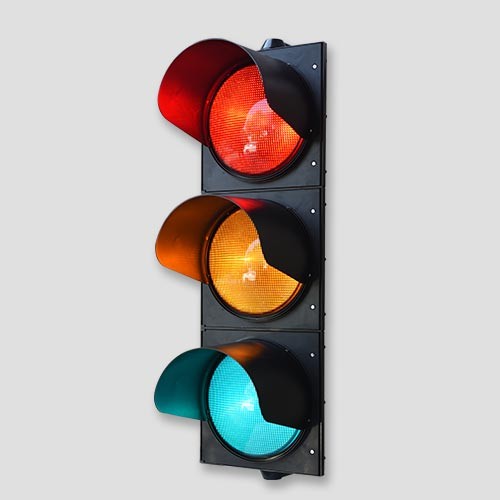

D300mm Newest PC Housing 3 Aspects Traffic Signals
Retrofit design ＆ UV stabilized shell
Wide viewing angles& low power consumption
Even brightness ＆ standard chromatogram
Compatibility with most traffic housings and controllers
|
Description |
Distribution of |
Dimension(mm) |
Housing |
Housing Color |
Weight (kg) |
|||
|
300mm traffic head |
W, 3/2 |
1044 X 342 X 168 |
PC |
Black |
10 |
|||
|
Color |
Diameter |
Typical Wavelength |
Phantom Class |
Impact Resistance |
Luminous |
Turn on/off time |
Voltage |
Rated Power |
|
Red |
Φ300mm |
626nm |
5 |
IR3 |
>800cd |
≤75ms |
120vac-230vac |
10w |
|
Yellow |
Φ300mm |
592nm |
5 |
IR3 |
>800cd |
≤75ms |
120vac-230vac |
10w |
|
Green |
Φ300mm |
505nm |
5 |
IR3 |
>800cd |
≤75ms |
120vac-230vac |
10w |
