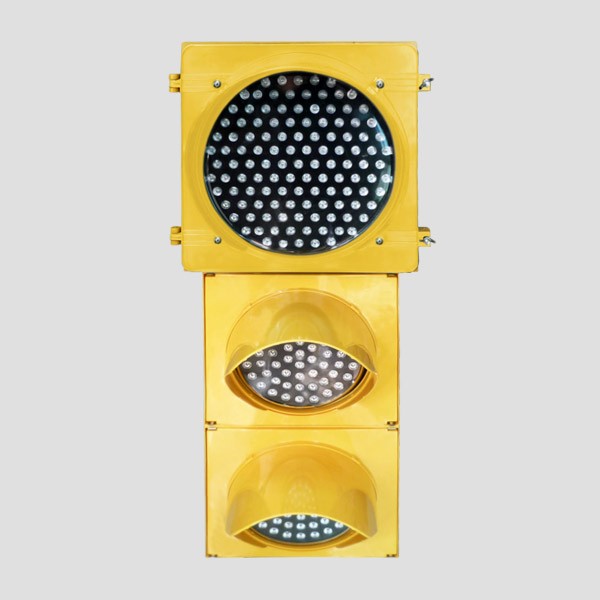

300mm plus 200mm Pixel Look Traffic Signal Head

Model: JD200-3-RF, 200mm

Luminous Intensity>200cd, 5mm LEDs

Long lifetime more than 100,000 hrs

Comply with ITE, ISO9001

300mm plus 200mm Pixel Look Traffic Signal Head

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description		Distribution of Luminous Intensity		Standards		Housing Material	Housing Color	Weight (kg)
200mm+300mm traffic head		Horizontal +/-30°		ITE		PC	Yellow	10
Color	Diameter	Typical Wavelength	Power Factor	LEDS	Luminous Intensity	Turn on/off time	Voltage	Rated Power
Red	Φ300mm	626nm	>90%	5mm Leds	>400cd	≤75ms	100vac-135vac	13w
Yellow	Φ200mm	592nm	>90%	5mm Leds	>400cd	≤75ms	100vac-135vac	10w
Green	Φ200mm	505nm	>90%	5mm Leds	>400cd	≤75ms	100vac-135vac	10w
