Description

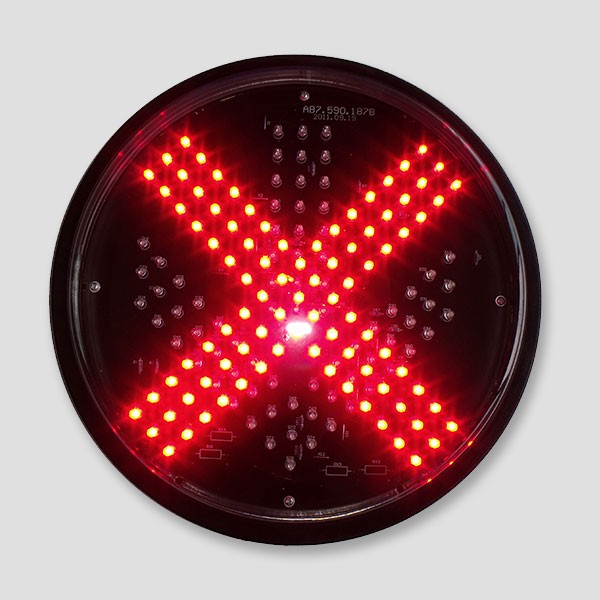

300mm Red Cross And Green Arrow Traffic Signal Light
LED lane control signals is designed to maintain efficient traffic flow at toll booths, tunnels, checkpoints of the weigh station on freeways, garages, parking lots or multi-lane roads. These signs show a red cross and a green arrow and are available in 200 mm (8 ") or 300 mm (12") with round lens or 400 mm and 600 mm in square structure. The structure of the signals is resistant to water, dust and impacts. The LED light source provides high intensity and low power consumption resulting in low operating costs. The viewing angle at 30 degrees. The life cycle of these signals is more than 80,000 operational hours.
300mm Red Cross And Green Arrow Traffic Signal Light Dimension
|
Model Number |
Size (mm) |
Color nm |
Luminous Intensity |
Voltage Range |
Power(w) Typical |
Lens features |
Power Factor |
T.H.D. |
|
Red cross |
300 |
R (626) 93pcs of LEDs |
>150cd |
95v-145v- |
10 |
Clear lens Pixel look |
＞0.9 |
＜20% |
|
Green arrow |
300 |
G (505) 69pcs of LEDs |
>150cd |
95v-145v- |
8 |
Clear lens Pixel look |
＞0.9 |
＜20% |
300mm Red Cross And Green Arrow Traffic Signal Light used in parking lot traffic light entrance and exit toll station
