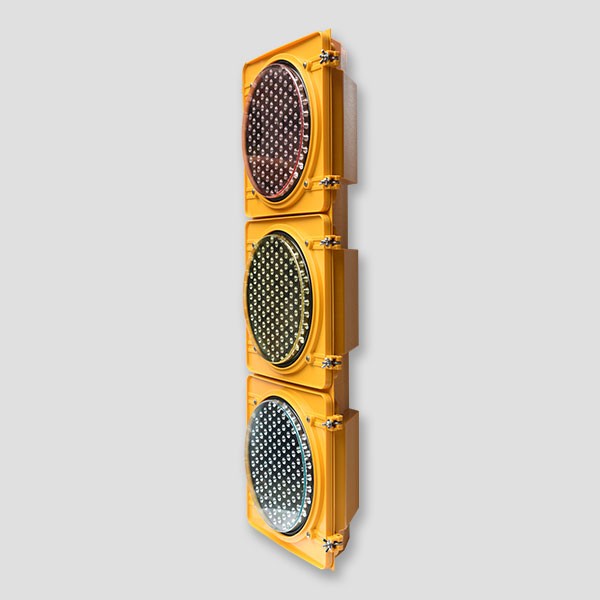

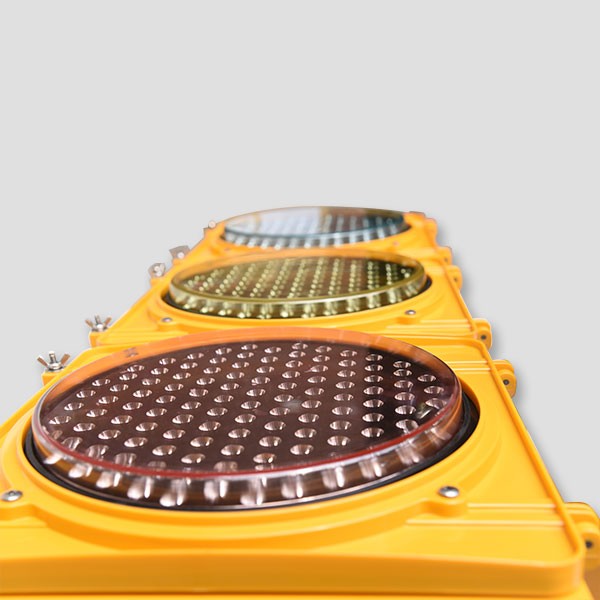

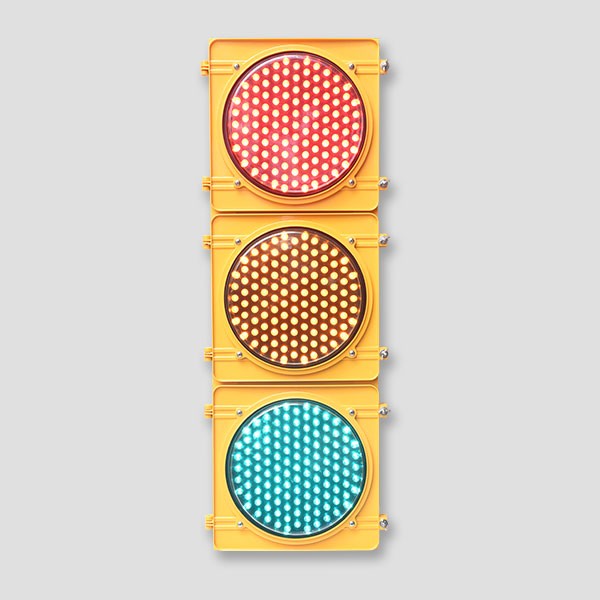

300mm 3 Way Semaforos LED De Semaforo En Rojo

Model: JD300-3-RF, 300mm

5mm LEDs with long lifetime more than 100,000 hrs

Central Light Intensity: >400cd, ITE

Comply with ITE, ISO9001

300mm 3 Way Semaforos LED De Semaforo En Rojo

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description		Distribution of Luminous Intensity		Dimension(mm)		Housing Material	Housing Color	Weight (kg)
300mm traffic signal		Horizontal +/-30°		1044 X 342 X 168		PC	Black	10
Color	Diameter	Typical Wavelength	Power Factor	Impact Resistance	Luminous Intensity	Turn on/off time	Voltage	Rated Power
Red	Φ300mm	626nm	>90%	IR3	>400cd	≤75ms	120vac-230vac	12w
Yellow	Φ300mm	592nm	>90%	IR3	>900cd	≤75ms	120vac-230vac	13w
Green	Φ300mm	505nm	>90%	IR3	>500cd	≤75ms	120vac-230vac	12w
