Description

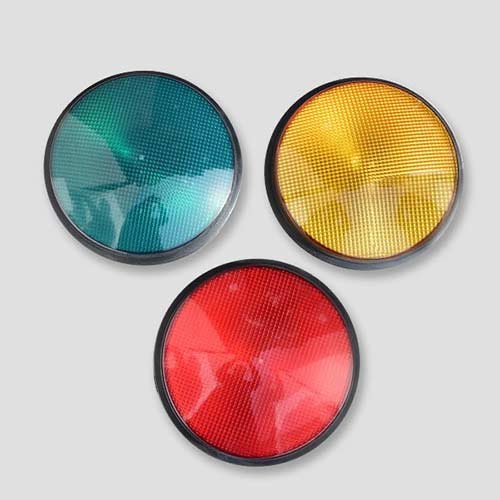

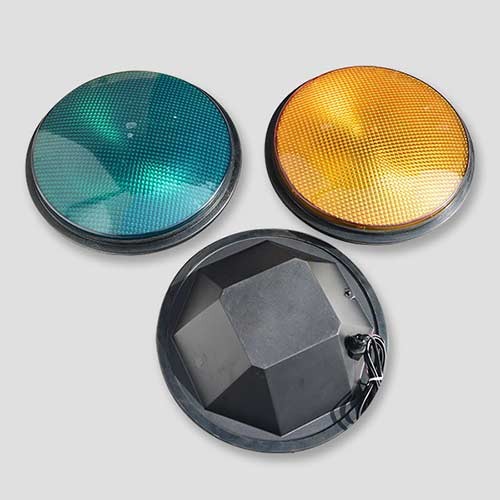

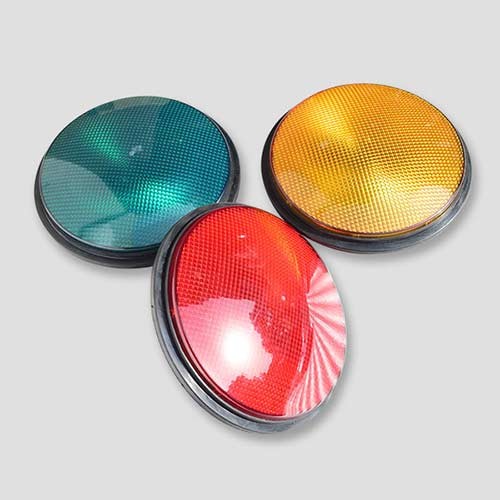

Sunburst 12-Inch (300 mm) LED Traffic Signal Module
Waterproof 12" Traffic Module
Retrofit design ＆ UV stabilized shell
Wide viewing angles& low power consumption
Even brightness ＆ standard chromatogram
Compatibility with most traffic housings and controllers
|
Description |
Distribution of |
Packing Size(cm) |
IP Grade |
Lens Features |
Weight (kg) |
|||
|
300mm traffic aspect |
W, 3/2 |
5pcs in 1ctn, 33 X 34 X75 |
IP65 |
Fresnel Lens |
1.3 |
|||
|
Color |
Diameter |
Typical Wavelength |
Phantom Class |
Impact Resistance |
Luminous |
Turn on/off time |
Voltage |
Rated Power |
|
Red |
Φ300mm |
626nm |
5 |
IR3 |
>800cd |
≤75ms |
120vac-230vac |
11w |
|
Yellow |
Φ300mm |
592nm |
5 |
IR3 |
>800cd |
≤75ms |
120vac-230vac |
12w |
|
Green |
Φ300mm |
505nm |
5 |
IR3 |
>800cd |
≤75ms |
120vac-230vac |
11w |
