Description

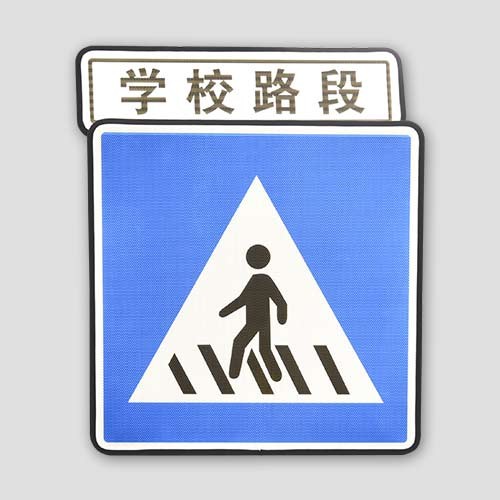

Road Safety Illuminated Warning Traffic Sign
We supply LED stop signs, speed limit signs, school signs, directional signs and more. Our LED road signs have much greater visibility than traditional traffic signs to help ensure traffic and pedestrian safety.
Traffic sign are becoming increasingly popular for construction sites, traffic sites and schools as a way to help reduce accidents and fatalities. Now solar traffic signs have the added advantage of being energy
efficient to help reduce costs.
Road Safety Illuminated Warning Traffic Sign Specification
|
Reflective sheeting |
Light source |
Surface
Luminance |
Flashing
Frequency |
Operating
Voltage |
Power |
Solar
Panel |
Storage
Battery |
|
3M reflective
sheeting |
LEDs, white color |
around
400-500 cd/m2 |
60times/min (flash interval time: 0.5sec) |
220Vac/110vac
or Solar power |
15W |
18V30W |
12V24AH
brand lithium battery |
|
Housing Material |
Front Panel | Visual Range | Installation | Product measure | Weight for 800mm |
|
Filmed aluminum oxide plate |
Uvioewsistant PC white plate | Over 500mm(By night) | Horizontal and Vertical | 600mm,700mm and 800mm | 9kgs |
Road Safety Illuminated Warning Traffic Sign Installation
1)Install the traffic sign on the pole by tightening the hoops. Connect the 220V AC input wire into the junction box on the back of traffic sign.
2)Install the traffic sign on the pole by tightening the hoops. Attach the battery and solar panel to the pole in place by tightening
the hoops. Connect the solar and battery wires into the junction box on the back of traffic sign.
Road Safety Illuminated Warning Traffic Sign Package
88*87.5*16.5cm, 2pcs in one carton
