Description

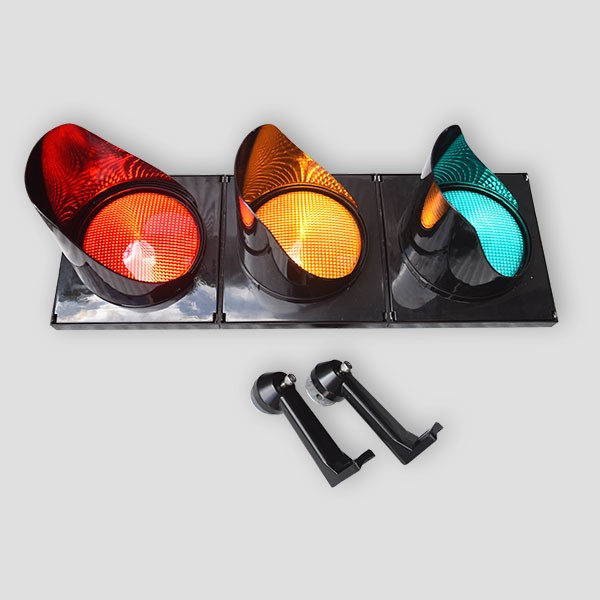

CE RoHS approved Factory direct price 200mm PC red green signal light led traffic light
Retrofit design ＆ UV stabilized shell
Wide viewing angles& low power consumption
Even brightness ＆ standard chromatogram
Compatibility with most traffic housings and controllers
|
Description |
Distribution of |
Dimension(mm) |
Housing |
Housing Color |
Weight (kg) |
|||
|
200mm traffic head |
W, 3/1 |
810 X 288 X 139 |
PC |
Black |
7.5 |
|||
|
Color |
Diameter |
Typical Wavelength |
Phantom Class |
Impact Resistance |
Luminous |
Turn on/off time |
Voltage |
Rated Power |
|
Red |
Φ200mm |
626nm |
5 |
IR3 |
>400cd |
≤75ms |
120vac-230vac |
10w |
|
Yellow |
Φ200mm |
592nm |
5 |
IR3 |
>400cd |
≤75ms |
120vac-230vac |
10w |
|
Green |
Φ200mm |
505nm |
5 |
IR3 |
>400cd |
≤75ms |
120vac-230vac |
10w |
